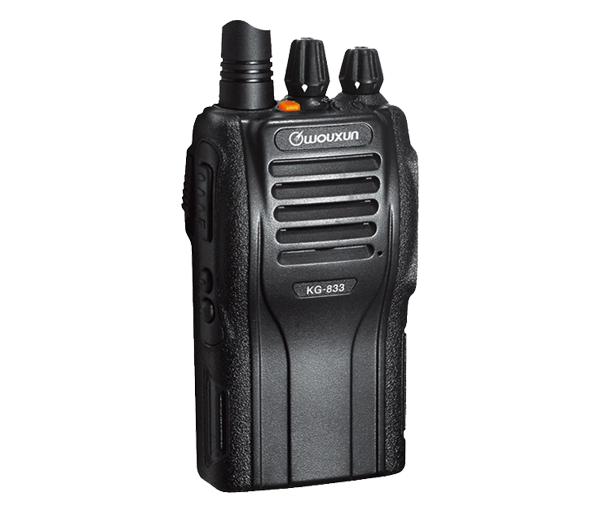

Two Way Radio KG-833

kg-833
 Product Resource And Related Webpage Link
... Send Personal Order





RADIO  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

RADIO  FUNCTION
  • DTMF Encoding And Decoding
  • High / Low Power Selection
  • Multi Silent Mode ( QT / QTADT / QTXDT )
  • Distant Alarm
  • VOX Transmission ( Level Adjustable )
  • All Calls , Group Calls , Selective Calls
  • 105 Groups DCS , 50 Groups CTCSS
  • Multi Scan Mode ( TO / CO / SE )
  • Busy Channel Lockout
  • Superheterodyne Receiver Type
  • Wide / Narrow Bandwidth Selection ( 12.5 / 25.0 KHz )
  • Inspection , Monitor , Stun
  • Kill , Emergency Alarm
  • Programmable By Computer

TECHNICAL  SPECIFICATION
General
   Frequency Ranges    VHF: 66-88 / 136-174 / 245-246 MHz
   UHF:300-390 / 400-470 / 450-520 MHz
   Standby Current 50mA
   Memory Channels 16
   Voltage 7.4 VDC
   Working Temperature -30℃ ~ +60℃
   Antenna Impedance 50 Ω
   Weight 242 G
   Dimension 62 x 39 x 103 (MM)
Receiver
   Sensitivity (12dB SINAD) ≤0.25 µV
   Audio Output Power ≥500 mW
   Selectivity 60 dB
   Intermodulation 60 dB
   Spurious Response Rejection 65dB / 70dB

Transmitter
   Maximum Deviation ±5KHz to 25KHz
   Frequency Stability ±2.5 PPM
   RF Power Output VHF=5W/1W , UHF=4W/1W , PMR446=0.5W~4W
   Type of Modulation 16K (F3E) , 11K (F3E)
   Spurious And Harmonious -36dBm<1GHz , -30dBm>1GHz
   FM Noise 40 dB
   Adjacent Channel Power 70dB / 60dB
   Audio Distortion ≤5%

STANDARD  ACCESSORY
BLO-004

ANO-005

OTH-005

OTH-003
battery BLO-004,Battery

antenna ANO-005,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-003,Belt-Clip
Li-ion Battery Pack , 1700mAh   Antenna   Hand Strap   Belt Clip

CHA-005



charger CHA-005,Desktop-Charger



Desktop Charger
