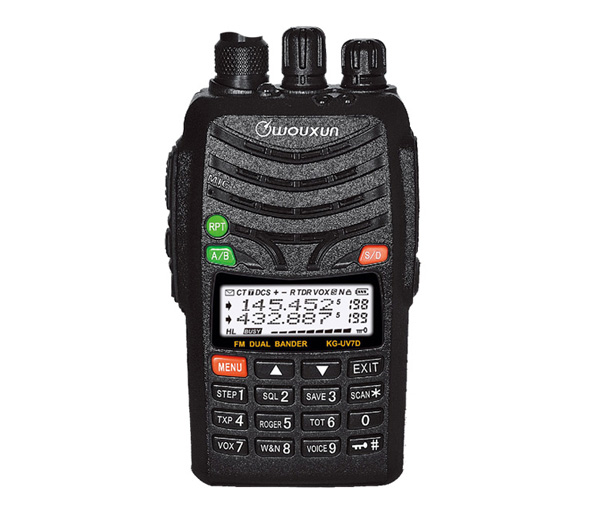

High Power Output , Dual Band Two Way Radio KG-UV7D

kg-uv7d
 Product Resource And Related Webpage Link
... Send Personal Order





RADIO  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

RADIO  FUNCTION
  • DTMF Encoding And Decoding
  • VOX And SOS Function
  • Work Mode : U-V , V-U , V-V , U-U Can Be Set Freely
  • Bright Flashlight Iumination
  • Band Can be Set Freely VHF TX-UHF RX or UHF TX-VHF RX
  • Digital FM Radio
  • Bandwidth Selectable
  • Multi Scan Mode
  • Priority Scan , Add Scanning Channel
  • High / Low Power Selection
  • Channel Name Edit And Display
  • Burst Tone 1750Hz
  • 50 Groups CTCSS , 105 Groups DCS
  • Low Voltage Voice Prompt
  • Busy Channel Lockout
  • Transmit Overtime Voice Prompt
  • Begin / End Transmitting Beep Prompt
  • Auto / Manual Keypad Lock
  • Wire Clone , Programmable by Computer
  • Display Selectable on Channel Mode
  • Power on Display Message Customizable
  • English Voice Guide
  • Superheterodyne Receiver Type

TECHNICAL  SPECIFICATION
General
  Frequency Range   Suitable For Different Countries or Areas
  136-174 & 400-480MHz (RX / TX)
  50-54 & 136-174MHz (RX / TX)
  FM = 76-108MHz (RX)
  Memory Channels 199
  Step 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
  Frequency Stability ± 2.5PPM
  Operating Voltage 7.4VDC
  Operating Temperature  -30℃ ~ +60℃
  Waterproof IP 55
  Antenna Impedance 50Ω
  Dimension 65 x 119 x 39 MM
  Weight 252 G
Transmitter
  Frequency Stability ± 2.5PPM
  RF Carrier Power UHF : 5W , VHF : 7W
  Effective Radiation Power within pre-determined value ±7.5dB
  Max. Frequency Deviation Channel Space : 25KHz  ± 5KHz
Channel Space : 12.5KHz ± 2.5KHz
  Audio Modulation +3dB (pre-emphasis by 6dB between 0.3-3KHz)
  Adjacent Channel Power Channel Space : 25KHz  ≥70 dB
Channel Space : 12.5KHz  ≥60 dB
  Spurious Radiation ≤-30dBm
  Inter Modulation Attenuation ≥40dB
  Modulation Distortion ≤10%
  Residual FM ≤-35dB
  Residual AM ≤3%

Receiver
  Sensitivity 0.16µV (12dB SINAD)
  Squelch Rejection Sensitivity ≤0.8µV
  Squelch Sensitivity ≤0.2µV
  Audio Output Power 500mW
  Audio Distortion ≤5%
  Audio Response (300 - 3000Hz)  +1 to -3dB
  Co-Channel Rejection ≥-8.0dB
  Performance of Amplitude Limiter ≤3
  Adjacent Channel Selection Channel Space : 25KHz  ≥70 dB
Channel Space : 12.5KHz  ≥60 dB
  Inter-Modulation ≥65 dB
  Resistance ≥84 dB
  Spurious Radiation 9KHz-1GHz ≤ -57dBm
1GHz-4GH z≤ -47dBm


STANDARD  ACCESSORY
BLO-004

ANO-032

OTH-005

OTH-003
battery BLO-004,Battery

antenna ANO-032,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-003,Belt-Clip
Li-ion Battery Pack , 1700mAh   Antenna   Hand Strap   Belt Clip

CHA-003



charger CHA-003,Desktop-Charger



Desktop Charger
