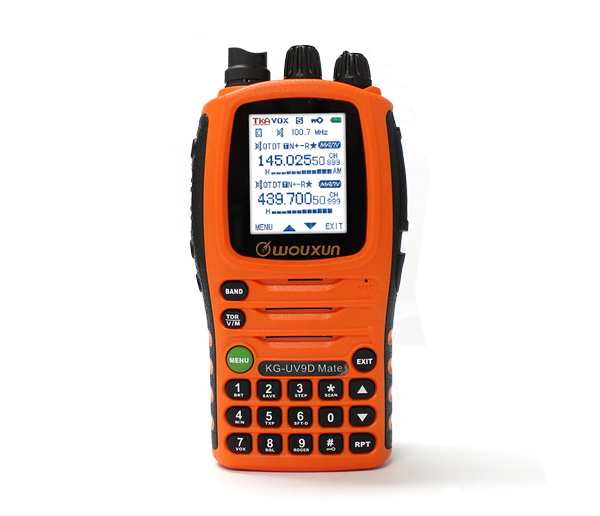

UV Dual Bands , Colorful Shell , Two Way Radio KG-UV9D Mate
wouxun kg-uv9d mate
Product Resource And Related Webpage Link
... Send Radio Order Message
... Share KG-UV9D-MATE  to Your Facebook
... Share KG-WV9D-MATE  to Your Twitter
... Download KG-UV9D-MATE User Manual
  • Cross Band Repeater
  • Large Color Screen
  • Completely Turn Off Display Screen Background Light
  • Completely Trun Off Flickering Indicator Light
  • Dual Receiving
  • Duplex Work on A&B Areas
  • RX on The Same / Different Bands of A&B Areas Simultaneously
  • Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency
  • Channel Groups Scanning
  • Memory Channels 999
  • QT / DQT Encoding / Decoding , QT / DQT Scan
  • Non-Standard CTCSS Can be Set Arbitrarily
  • VOX and SOS Function
  • Reverse Frequency
  • Mplitude-frequency PTT Settings
  • Incoming Message Display Caller ID Display
  • DTMF Encoding and Decoding
  • All Calls , Group Calls And Selective Calls
  • PriorRemote Alarmity Scan Function
  • Wide / Narrow Bandwidth Selection (25KHZ/12.5KHz)
  • Chinese or English Voice Guide
  • Chinese or English Screen Display
  • English Channel Name Edit
  • Bright Flashlight illumination
  • Single-Tone Pulse Frequency: 1000 / 1450 / 1750 / 2100Hz
  • Stopwatch
  • Multi Definition for Sidekeys
   Frequency Range

   Suitable For Different Countries or Areas

   1 TX: 136-174MHZ(FM)
    2 RX: 76-108MHZ(FM)
             108-136MHZ (Air Ground)

   Step 2.5 / 5.0 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4 VDC
   Antenna Impedance 50Ω
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity 08-136MHz(AM) -106.0dbm SN 13dB
136-180MHz -119.0dbm SINAD 13dB
230-250MHz -116.0dbm SINAD 13dB
350-400MHz -119.0dbm SINAD 13dB
400-512MHz -119.0dbm SINAD 13dB
700-986MHz -96.0dbm SINAD 12dB
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF: 8W / 5W / 1W , VHF: 10W / 7W / 1W
BLO-012   CHA-011   CHA-011   ANO-011
battery ...
charger ...
adaptor ...
antenna ...
Li-ion Battery Pack , 3200mAh   Charger   Power Supply Adaptor   Antenna
OTH-005   OTH-001
hand strap ...
belt clip ...
Hand Strap   Belt Clip
Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers
Send Accessory Inquiry
