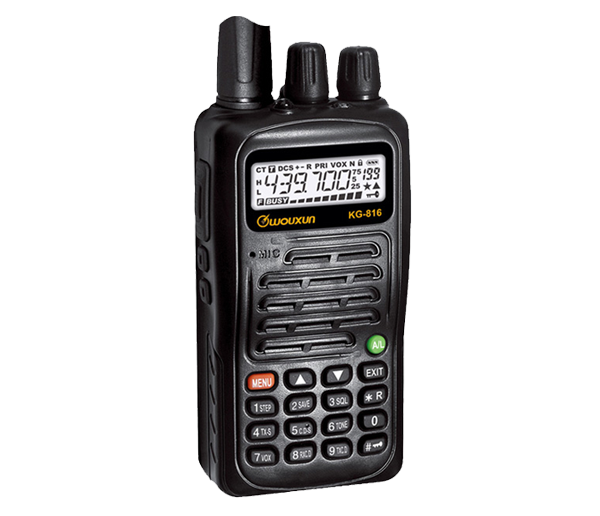

Two Way Radio KG-816

kg-816
 Product Resource And Related Webpage Link
... Send Personal Order





RADIO  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

RADIO  FUNCTION
  • Begin / End Transmitting Beep Prompt
  • ANI ( Caller ID )
  • SOS Function
  • 1750Hz Burst Tone
  • Inspection , Monitor , Stun
  • Kill And Emergency Alarm
  • 105 Groups DCS , 50 Groups CTCSS
  • VOX Transmission ( Level Adjustable )
  • Digital FM Radio With Frequency Display
  • Wide / Narrow Bandwidth Selection ( 12.5 / 25.0 KHz )
  • Reverse Frequency Function
  • Multi Scan Mode ( TO / CO / SE )
  • All Calls, Group Calls , Selective Calls
  • Displaying Mode : Frequency / Channel / Channel name
  • Speedy Working Mode Shift ( MENU+TDR )
  • Channel Name Edit And Display
  • Battery Capacity Prompt
  • TOT ( Time-Out Timer )
  • Superheterodyne Receiver Type
  • Wire-Clone Function
  • Programmable by Computer
  • Busy Channel Lockout
  • Keypad Lock ( Auto / Manual )
  • Voice Guide
  • Distant Alarm

TECHNICAL  SPECIFICATION
   Frequency Ranges    VHF: 66-88 / 136-174 / 245-246 MHz
   UHF:400-470 / / 400-480 / 420-520 MHz
   Channel Spacing Wide : 25KHz , Narrow : 12.5KHz
   Output Power VHF=5W / 1W , UHF=4W / 1W
   Step 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
   Memory Channels 199
   Voltage 7.4 VDC
   Working Temperature -30℃ ~ +60℃
   Antenna Impedance 50 Ω
   Audio Distortion ≤5%
   Modulation Type FM(F3E)
   Max. Frequency Deviation ≤5 KHz
   Adjacent Channel Selection ≥65 dB
   Frequency Stability ±2.5 PPM
   Sensitivity (12dB SINAD) ≤0.2 µV
   Audio Output power ≥500 mW
   Spurious Radiation ≤-60 dB
   Waterproof IP55

STANDARD  ACCESSORY
BLO-004

ANO-005

OTH-005

OTH-003
battery BLO-004,Battery

antenna ANO-005,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-003,Belt-Clip
Li-ion Battery Pack , 1700mAh   Antenna   Hand Strap   Belt Clip

CHA-005



charger CHA-005,Desktop-Charger



Desktop Charger

Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers
Send Accessory Inquiry
