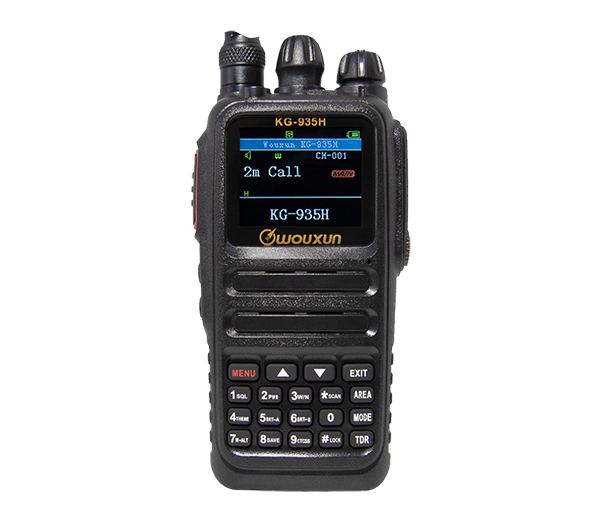

KG-935H Tri-Band Amateur Radio (2M / 1.25M / 70CM)

kg-935h
Product Resource And Related Webpage Link
... Buy Radio Now





RADIO  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
CUSTOMER  REVIEW
PRODUCT  LIST

RADIO  FUNCTION
  • FM Radio Mode
  • NOAA Weather Mode , NOAA Weather Alerts
  • 4 Weather Alert Notifications
  • Repeater Capable
  • Cross-Band Repeat
  • Up To 8W Transmit Power
  • Rechargeable USB-C Battery Included
  • Battery Charger
  • SOS Feature
  • Alarm Feature
  • Channel Scan
  • Priority Scan
  • Scan Group Support
  • Standard And Non-Standard CTCSS / DCS
  • Split CTCSS / DCS Tone Support
  • CTCSS / DCS Tone Scan
  • Favorite Channels
  • Channel And Frequency Modes
  • Simultaneous Dual Channel Receive
  • Reverse Frequency Function
  • Compander Feature
  • Scrambler Feature
  • Low Battery Alert
  • Wide / Narrow Bandwidth Selection (12.5 / 25.0 KHz)
  • Full Color Dual Channel Display
  • 10 Colorful Theme Options
  • Channel Name, Number, or Frequency Display
  • Incoming Caller ID Display
  • Custom Display Messages
  • Voltage Display
  • High / Med / Low Power Selectable
  • Selectable Battery Meter
  • Time-Out Timer
  • VOX Function
  • Keypad Lock
  • English Voice Prompts
  • Drop-In Charge Capable
  • Cloning Capable
  • PC Programmable (Requires Optional Cable)
  • 2 Configurable Side Keys
  • LED Flashlight
  • Stopwatch
  • DTMF Encode / Decode
  • Reset Function
  • Power Saver

TECHNICAL  SPECIFICATION
General
   Frequency Range

   Suitable for Different Countries or Areas
   144-148 & 222-225 & 420-450 MHz

   Step 2.5 / 5.0 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃ ~ +40℃
   Voltage 7.4VDC
   Antenna Impedance 50Ω
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1 ~ -3dB (0.3~3KHz) +1 ~ -3dB (0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF / VHF:0.25µV(12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1 ~ -3dB (0.3~3KHz) +1 ~ -3dB (0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF: 7W / 5W / 1W , VHF: 8W / 5W / 1W


STANDARD  ACCESSORY
BLO-009   CHA-028   CHA-028   ANO-039
battery BLO-009,Battery

charger ...

adaptor ...

antenna ...
Li-ion Battery Pack , 2600mAh   Charger   Power Supply Adaptor   Antenna

OTH-005   OTH-001
hand strap ...

belt clip ...

Hand Strap   Belt Clip
