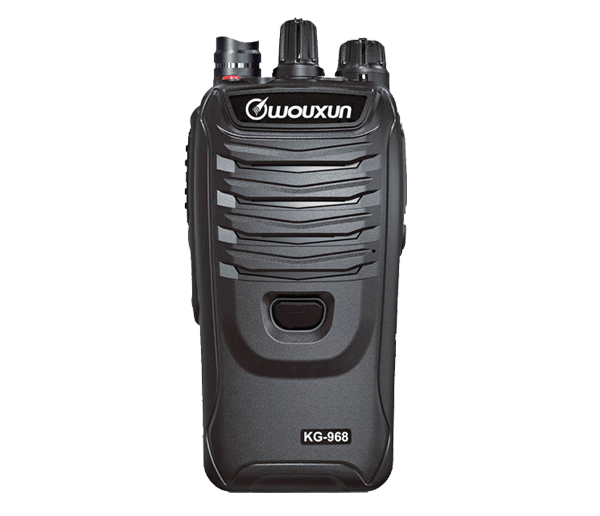

Superheterodyne Receiver , Two Way Radio KG-968

kg-968
 Product Resource And Related Webpage Link
... Send Personal Order





RADIO  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

RADIO  FUNCTION
  • DTMF Encode And Decode
  • VOX And SOS Function
  • Inspection , Monitor , Stun
  • Kill , Emergency Alarm
  • Superheterodyne Receiver Type
  • Wide / Narrow Bandwidth Selection ( 12.5 / 25.0 KHz )
  • Single Tone Pulse : 1000 / 1450 / 1750 / 2100 Hz
  • Non-Standard CTCSS / DCS Supported
  • Scan Multi-Definition
  • Priority Channel Scan
  • Radio Direct Charging
  • Bluetooth Function
  • Program by Computer

TECHNICAL  SPECIFICATION
General
   Frequency Ranges    VHF: 66-88 / 136-174 / 216-280 MHz
   UHF:350-390 / 400-480 / 420-520 MHz
   Memory Channels 256
   Step 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
   Work Mode F2D / F3E
   Power Supply 7.4 VDC
   Working Temperature -20℃ ~ +55℃
   Antenna Impedance 50 Ω
   Weight 340 G
   Dimension 132 x 62 x 37 (MM)
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB (0.3~3KHz) +1~-3dB (0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5 %
   Audio Power ≤500 mW
   Sensitivity UHF / VHF : 0.25µV (12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB (0.3~3KHz) +1~-3dB (0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5 PPM
   Audio Distortion ≤5 %
   Output Power 5W / 1W


STANDARD  ACCESSORY
BLO-016

ANO-013

OTH-005

OTH-001
battery BLO-016,Battery

antenna ANO-013,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-001,Belt-Clip
Li-ion Battery Pack , 2600mAh   Antenna   Hand Strap   Belt Clip

CHA-012

CHA-012


charger CHA-012,Desktop-Charger

charger CHA-012,Power-Supply-Adaptor


Desktop Charger   Power Supply Adaptor
