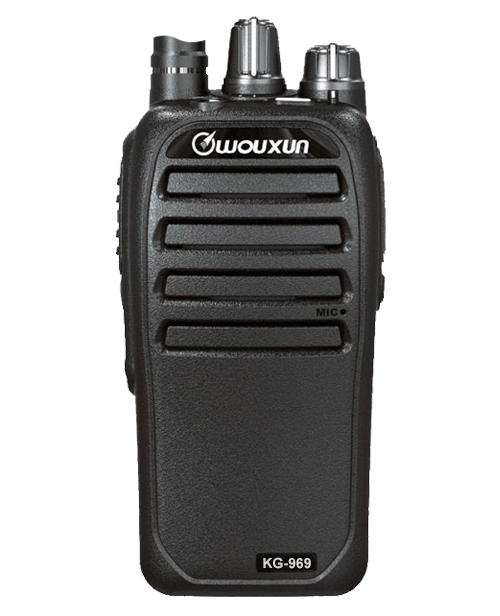

Superheterodyne Receiver , Two Way Radio KG-969

.

kg-969

Buy Radio Now
RADIO  FUNCTION
  • Bandwidth Selectable
  • DTMF Encoding And Decoding
  • Begin And End Transmitting Beep Prompt
  • ANI (Caller ID)
  • SOS Function
  • Inspection , Monitor , Stun
  • Kill And Emergency Alarm
  • 105 Groups DCS , 50 Groups CTCSS
  • CTCSS Scan And DCS Scan
  • Voice Guide
  • Distant Alarm
  • Call Ring
  • VOX Transmission , Level Adjustable
  • Superheterodyne Receiver Type
  • Incoming Message Display Caller ID
  • Reverse Frequency Function
  • Multi Scan Mode ( TO / CO / SE )
  • All Calls , Group Calls , Selective Calls
  • Displaying Mode : Frequency / Channel / Channel Name
  • Channel Name Edit And Display
  • Battery Capacity Prompt
  • TOT ( Time-out Timer )
  • Busy Channel Lockout
  • Keypad Lock ( Auto / Manual )
  • Wire-Clone Function
  • Programmable by Computer
  • FM Radio

TECHNICAL  SPECIFICATION
General
   Frequency Range    Can be Suitable For Different Countries or Areas
   VHF : 66-88 MHz
   Memory Channels 16
   Frequency Stability ±2.5 PPM
   Operating Voltage 7.4 VDC
   Operating Temperature  -30℃~+60℃
   Waterproof IP 66
   Antenna Impedance 50 Ω
   Operating Way Simplex of Co-Channel or Dis-Channel
Transmitter
   Frequency Stability ±2.5 PPM
   RF Carrier Power UHF: 4W , VHF: 5W
   Effective Radiation Power Power Changes Not Exceed
Preset Value ±7.5dB
   Max. Frequency Deviation Channel Space: 25KHz  ±5KHz
Channel Space: 12.5KHz ±2.5KHz
   Audio Modulation +3dB ( Pre-emphasis by 6dB Between 0.3-3KHz )
   Adjacent Channel Power Channel Space: 25KHz  ≥70 dB
Channel Space: 12.5KHz  ≥60 dB
   Spurious Radiation ≤-30dBm
   Inter Modulation Attenuation ≥40dB
   Modulation Distortion ≤10%
   Residual FM ≤-35dB
   Residual AM ≤3%

Receiver
   Sensitivity (12dB SINAD) 0.16µV
   Squelch Rejection Sensitivity ≤0.8µV
   Squelch Sensitivity ≤0.2µV
   Audio Output Power 500mW
   Audio Distortion ≤5%
   Audio Response ( 300-3000Hz )  +1 to -3dB
   Co-channel Rejection ≥ -8.0dB
   Performance of Amplitude
   Limiter
≤ 3
   Adjacent Channel Selection Channel Space: 25KHz  ≥70 dB
Channel Space: 12.5KHz  ≥60 dB
   Inter-modulation ≥65 dB
   Resistance ≥84 dB
   Spurious Radiation 9KHz-1GHz ≤ -57dBm
1GHz-4GHz ≤ -47dBm

STANDARD  ACCESSORY
BLO-016

ANO-012

OTH-005

OTH-001
battery BLO-016,Battery

antenna ANO-012,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-001,Belt-Clip
Li-ion Battery Pack , 2600mAh   Antenna   Hand Strap   Belt Clip

CHA-012

CHA-012


charger CHA-012,Desktop-Charger

charger CHA-012,Power-Supply-Adaptor


Desktop Charger   Power Supply Adaptor
