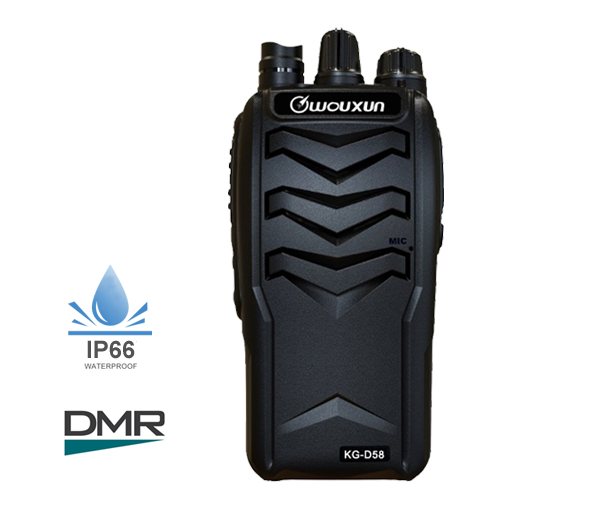

Digital And Analogue Two Way Radio KG-D58

kg-d58

Product Resource And Related Webpage Link

... Send Radio Order Message

... Share KG-D58 to Your Facebook

... Share KG-D58 to Your Twitter

... Download Programming Software


Conventional digital two-way radio Robust and reliable, the WOUXUN KG-D58 portable digital radio offers a simple communication solution, ideal for users operating in manufacturing, facilities management or education environments.


MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
CUSTOMER  REVIEW
PRODUCT  LIST


Secure Communication
Besides The Encryption Inherent to Digital Technology, The KG-D58 Radios
Provide Enhanced Encryption Capabilities. This Process Includes End-to-End
Encryption And Over-the-air Encryption

Superior Voice
With The Adoption of The AGC Technology in Combination With The Application
of Narrowband Codec And Digital Error Correction Technologies, The KG-D58
Radios Are Capable of Ensuring Your Voice is Clear And Crisp Even in Noisy
Environments or At The Edge of The Coverage Area

Higher Spectrum Efficiency And Channel Capacity
The TDMA Technology Allows Twice The Channels Based on The Same
Spectrum Resource , This Relieves The Stress of Increasing Shortage in
Spectrum Resource

MAIN  FUNCTIONS
  • 3072 Channel , 1024 Contacts , 255 Receiving Group
  • 250 Areas , 16 Scan List
  • Program Key
  • Priority Channel
  • Radio Program Password
  • Power Save Mode
  • Tail Elimination
  • Lone Worker
  • Radio Disable or Enable
  • ARTS
  • Detection
  • Waterproof IP66
  • Call Alert
  • Flashlight
  • CTCSS Encoding And Decoding , Support Non-standard
  • DTMF Encoding and Decoding
  • Scan TX Designated Channel
  • Low Battery Power Off
  • One Touch Relay / Talkaround
  • Transmit Time-out Alert
  • FM Radio
  • Firmware Upgrade
  • Emergency Alarm
  • VOX Function

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range UHF=400-480MHz , PMR=446MHz
   Channel Number 3072
   Operating Temperature -20℃~+40℃
   Antenna Resistance 50Ω
   Working Voltage 7.4 VDC
   Weight 300 g
   Size 64 x 41 x 130 (mm)
Receiver
   Analog Receive Sensitivity 0.25µV@12dB SINAD
   Digital Receive Sensitivity 0.25µV(BER:5%)
   Adjacent Channel Selectivity ≤60dB@12.5KHz
   Audio Response +1dB~-3dB
   Audio Distortion ≤5%
   Audio Power 1W
   Inter Modulation ≥65dB

Transmitter
   FM Modulation 12.5KHz : 11KOF3E
   4FSK Digit Modulation 12.5KHz(Data Only) : 7K60FXD
12.5KHz(Data+Voice) : 7K60FXE
   Adjancent Channel Power ≤-60dB
   Band Width Digital=12.5KHz , Analogue=12.5/25.0KHz
PMR=12.5KHz
   Frequency Stability ±1 PPM
   Audio Distortion ≤5%
   Vocoder Type AMBE+2TM
   Audio Response +1dB~-3dB
   Digital Protocol ETSI-TS102 , 361-1 , 361-2 , 361-3
   Bit Error Ratio ≤5%
   Modulation Limit ±2.5KHz@12.5KHz
   Output Power UHF ( H : 4W , L : 1W) , PMR ( 0.5W )


STANDARD  ACCESSORY
BLO-016   CHA-012   CHA-012   ANO-012
battery ...

charger ...

adaptor ...

antenna ...
Li-ion Battery Pack , 2600mAh   Desktop Charger   Power Supply Adaptor   Antenna

OTH-005   OTH-001
hand strap ...

belt clip ...

Hand Strap   Belt Clip

OPTIONAL  ACCESSORY
BLO-011   CHA-027   LCO-003   PCO-008
battery ...

charger ...

case ...

usb cable ...
Li-ion Battery Pack , 3200mAh   Six-way Charger   Leather Case   USB Programming Cable

HEO-001   HEO-002   HEO-003   HEO-005
headset ...

earphone ...

headset ...

earphone ...
Headset   Air Conduit Earphone   Headset   Air Conduit Earphone

SMO-001   SMO-002   CCO-002   ELO-005
speaker ...

speaker ...

car charger ...

eliminator ...
Speaker   Speaker   Car Charger   Eliminator

ANO-012   ANO-038   AAO-001   AAO-002
antenna ...

antenna ...

adaptor ...

adaptor ...
Antenna   Antenna   SL16 Antenna Adaptor   BNC Antenna Adaptor
