radio menu CB Radio KG-M80



  CLICK HERE CLOSE LIST radio list

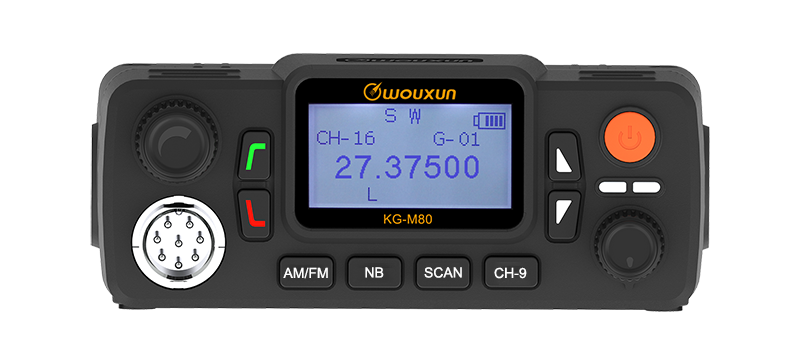

kg-m80
Send Order Message

MAIN  FUNCTIONS
  • Big LCD Displays Frequency And All Kinds of Information
  • Frequency Tuning Step 100Hz、1KHz 、10KHz、100KHz 、1MHz
  • Flexible Menu Function and PC Program Software
  • SQ , ASQ Function (FM and AM Mode Only)
  • RF PWR Adjustment
  • SCAN Function
  • Programmable RB Function
  • Offset Frequency Function
  • +10KHZ Function
  • EMG Channel Function
  • SWR Protect
  • Power Supply Voltage Protection
  • Key-Lock Function
  • Model Name Customized Function
  • CTCSS / DCS Code(Optional)
  • TOT Function

TECHNICAL  SPECIFICATION
General
   Audio Power ≤500 mW
   Operating Temperature -20 ℃~+40 ℃
   Voltage 13.8 VDC
   Setp 100Hz / 1KHz / 10KHz / 100KHz / 1MKhz
   Frequency Range 26-27 MHz
   Memory Channels 999
   Mode F2D / F3E
   Antenna Impedance 50Ω


Analogue Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≤ 70dB ≤ 60dB
   Inter-Modulation ≤ 65dB ≤ 65dB
   Spurious Response ≤ 70dB ≤ 70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Squelch Sensitivity ≥45dB ≥40dB
   Audio Distortion ≤5%
   Output Power 25W
Analogue Receiver
  Wide Narrow
   Modulation 16K F3E 11K F3E
   Effective Radiation Power ≥70dB ≥60dB
   Spurious Response ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Offset ±5KHZ ±2.5KHZ
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
