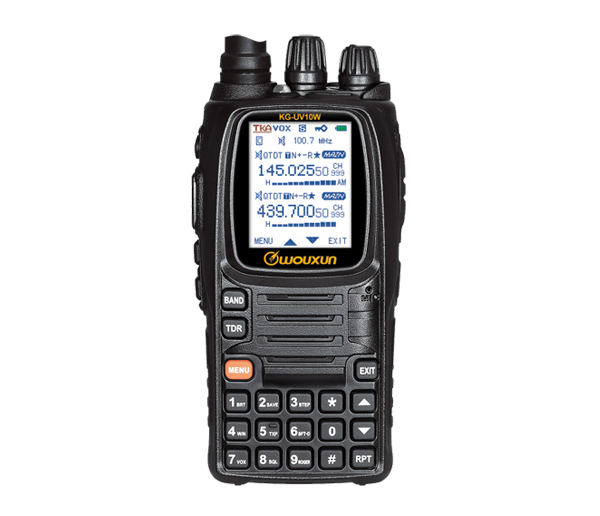

UV Dual Bands Two Way Radio KG-UV10W

kg-uv10w
 Product Resource And Related Webpage Link
... Send Radio Order Message





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

MAIN  FUNCTIONS
  • Cross Band Repeater
  • Large Color Screen
  • Completely Turn Off Display Screen Background Light
  • Completely Trun Off Flickering Indicator Light
  • Dual Receiving
  • Duplex Work on A&B Areas
  • RX on The Same / Different Bands of A&B Areas Simultaneously
  • Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency
  • Channel Groups Scanning
  • Memory Channels 999
  • QT / DQT Encoding / Decoding , QT / DQT Scan
  • Non-Standard CTCSS Can be Set Arbitrarily
  • VOX and SOS Function
  • Reverse Frequency
  • Mplitude Frequency PTT Settings
  • Incoming Message Display Caller ID Display
  • DTMF Encoding and Decoding
  • All Calls , Group Calls And Selective Calls
  • PriorRemote Alarmity Scan Function
  • Wide / Narrow Bandwidth Selection (25KHZ/12.5KHz)
  • Chinese or English Voice Guide
  • Chinese or English Screen Display
  • English Channel Name Edit
  • Bright Flashlight illumination
  • Single-Tone Pulse Frequency: 1000 / 1450 / 1750 / 2100Hz
  • Stopwatch
  • Multi Definition for Sidekeys

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range 136-174 & 400-480 MHz
   Step 2.5 / 5.0 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4 VDC
   Antenna Impedance 50Ω
   Weight 490 G
   Dimension 125 x 62 x 33 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF:119dBm SINAD 13dB

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF: 8W / 5W / 1W , VHF: 10W / 7W / 1W


STANDARD  ACCESSORY
BLO-010   CHA-011   CHA-011   ANO-014
battery ...

charger ...

adaptor ...

antenna ...
Li-ion Battery Pack , 2000mAh   Charger   Power Supply Adaptor   Antenna

OTH-005   OTH-001
hand-strap ...

belt-clip ...

Hand Strap   Belt Clip
