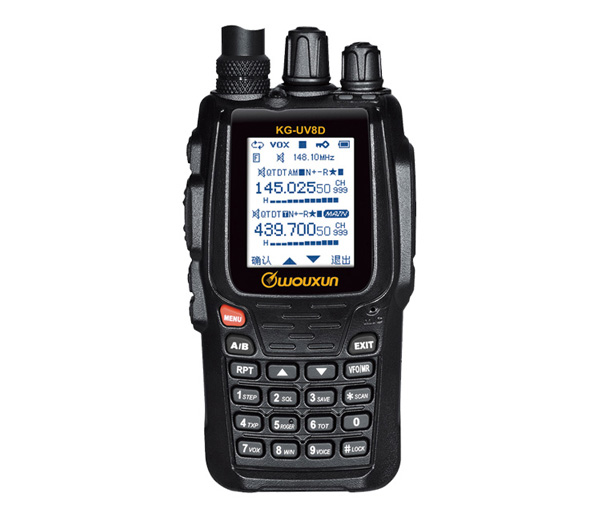

Dual Bands , Large Color Screen , Two Way Radio KG-UV8D

kg-uv8d
 Product Resource And Related Webpage Link
... Send Personal Order





RADIO  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

RADIO  FUNCTION
  • Dulex Repeater ( VHF to UHF or UHF to VHF )
  • Duplex Work Mode
  • Dual Receiving
  • Dual Bands Display on Large Screen
  • Cross-Band Repeater
  • QT / DQT Encoding And Decoding , QT / DQT Scan
  • VOX and SOS Funcion
  • Multi Definition For Sidekey
  • Incoming Message Display Caller ID
  • Wide / Narrow Bandwidth Selection (12.5 / 25.0 KHz)
  • DTMF Encoding & Decoding
  • English or Chinese Voice Guide
  • Bright Flashlight illumination
  • Reverse Frequency
  • Stopwatch
  • All Calls , Group Calls And Selective Calls
  • Priority Scan Function
  • Remote Alarm

TECHNICAL  SPECIFICATION
General
   Frequency Range 136-174 & 400-520 MHz
   Step 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃ ～ +40℃
   Voltage 7.4 VDC
   Antenna Impedance 50 Ω
   Weight 302 G
   Dimension 125 x 62 x 32 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1 ~ -3dB (0.3~3KHz) +1 ~ -3dB (0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF / VHF ： 0.25µV （12dB SINAD）

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1 ~ -3dB (0.3~3KHz) +1 ~ -3dB (0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF H:4W / L:1W  ,  VHF H:5W / L:1W


STANDARD  ACCESSORY
BLO-006

ANO-011

OTH-005

OTH-003
battery BLO-006,Battery

antenna ANO-011,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-003,Belt-Clip
Li-ion Battery Pack , 1700mAh   Antenna   Hand Strap   Belt Clip

CHA-009



charger CHA-009,Desktop-Charger



Desktop Charger

Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers
Send Accessory Inquiry
