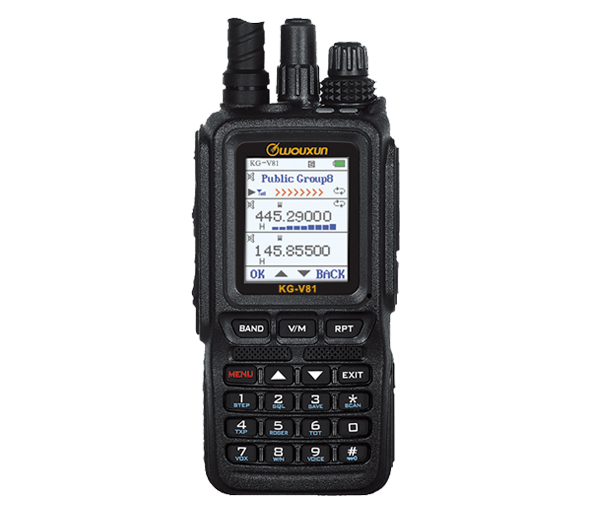

UV Dual Band Radio , Public Network And Analogue , Simcard Radio KG-V81

kg-v81

Product Resource And Related Webpage Link

... Send Radio Order Message



MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
CUSTOMER  REVIEW
PRODUCT  LIST

MAIN  FUNCTIONS
  • Compatible With 4G / 3G / 2G Public Network
  • Network to Analogue , Analogue to Network , Analogue to Analogue
  • Duplex Work at A / B / C Areas , One Area TX , Another Area RX
  • Dual Receive , Simultaneous Reception Among A / B / C Areas , Same Band or
    Cross Band Available
  • Large Colorful Screen
  • Tri-Bands Display on The Large Screen Independently
  • Frequency Offset And Direction Programmable in Repeater Mode UHF / VHF
    or VHF / UHF Cross-Band Repeater
  • QT / DQT Encoding and Decoding
  • QT / DQT Scan
  • Bright Flashlight Illumination
  • Single Tone Pulse Frequency , 1000 / 1450 / 1750 / 2100 KHz
  • VOX and SOS Function
  • Multi Definition For Sidekeys
  • Incoming Message Display Caller ID
  • DTMF Encoding And Decoding
  • All Calls , Group Calls And Selective Calls
  • Priority Scan Function
  • Remote Alarm
  • Wide / Narrow Bandwidth Selection (12.5 / 25 KHz)
  • Chinese or English Voice Guide
  • Reverse Frequency
  • Stopwatch , Scramlber , Compander
  • Setting For Backlight
  • Support RealPTT Public Network Platform

TECHNICAL  SPECIFICATION
General
   Audio Power ≤500 mW
   Operating Temperature -20 ℃~+40 ℃
   Voltage 7.4 VDC
   Weight 290 G
   Dimension 48 x 28 x 130 MM

Public Network
   Work Frequency Compatible With 4G / 3G / 2G Network
   Max TX Power 23~25dBm @ AII Up Bits
   RX Sensitivity -106 dBm

Analogue
  Frequency Range

   Suitable For Different Countries or Areas
   136-174 & 400-470MHz (RX/TX)
   136-174 & 400-480MHz (RX/TX)
   144-148 & 430-440MHz (RX/TX)
    76-108MHz (FM , RX , Setp 100K)

   Setp 5 / 6.25 / 12.5 / 25 / 50 / 100 KHz
   Memory Channels 999
   Mode F2D/F3E
   Antenna Impedance 50Ω
Analogue Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≤ 70dB ≤ 60dB
   Inter-Modulation ≤ 65dB ≤ 65dB
   Spurious Response ≤ 70dB ≤ 70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Squelch Sensitivity ≥45dB ≥40dB
   Audio Distortion ≤5%
   Output Power UHF 4W , VHF 5W

Analogue Receiver
  Wide Narrow
   Modulation 16K F3E 11K F3E
   Effective Radiation Power ≥70dB ≥60dB
   Spurious Response ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Offset ±5KHZ ±2.5KHZ
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Sensitivity UHF : 0.25uV(12dB SINAD)
VHF : 0.25uV(12dB SINAD)

STANDARD  ACCESSORY
BLO-015   CHA-014   CHA-014   ANO-011
battery ...

charger ...

adaptor ...

antenna ...
Li-ion Battery Pack , 2500mAh   Desktop Charger   Power Supply Adaptor   Antenna

OTH-005   OTH-002
hand strap ...

belt clip ...

Hand Strap   Belt Clip

OPTIONAL  ACCESSORY
HEO-001   HEO-002   ELO-006   PCO-009
headset ...

headset ...

eliminator ...

usb cable ...
Headset   Air Conduit Earphone   Eliminator   USB Programming Cable

CHA-032   CCO-002   SMO-002   CHA-031
charger ...

car charger ...

speaker ...

charging cable ...
Six-way Charger   Car Charger   Sperker   USB Charging Cable
